Mobile Barge Ballast Water Treatment Service
Updated

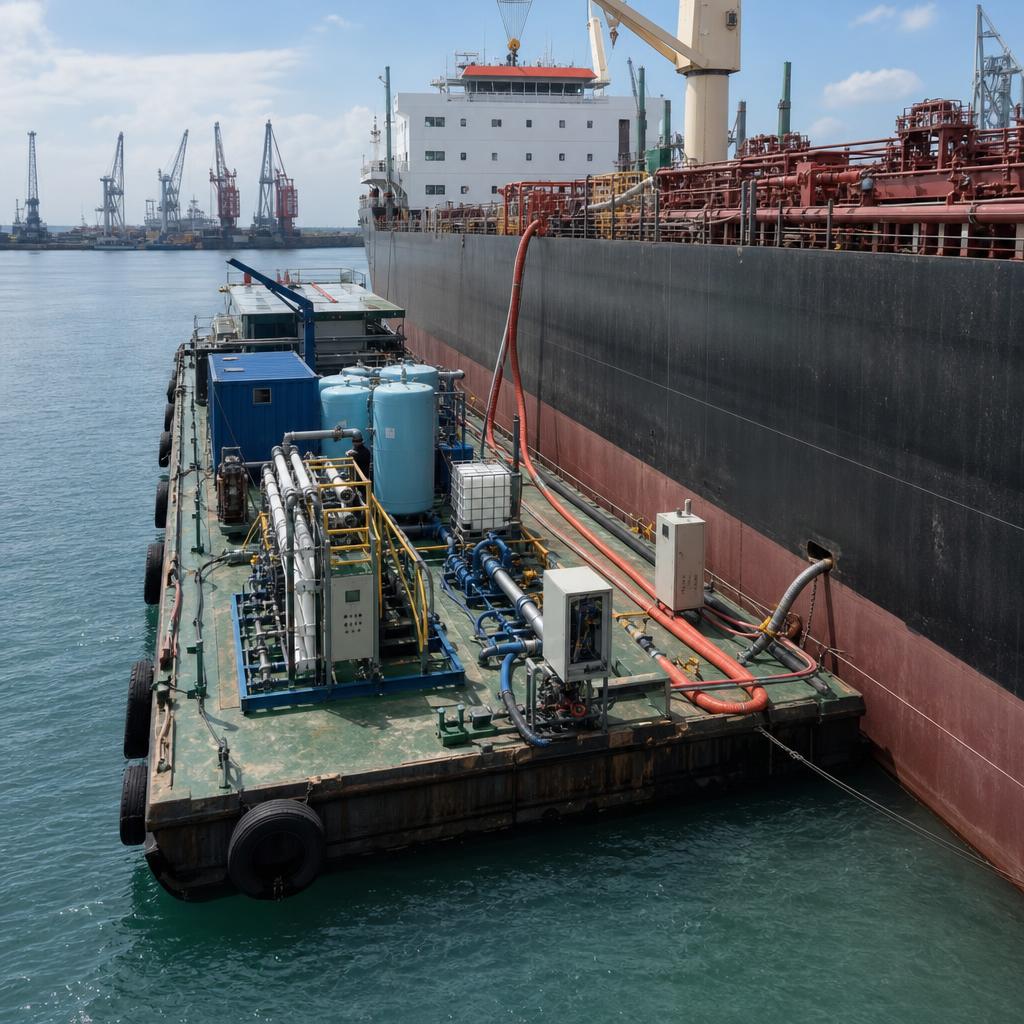

A mobile treatment barge can position treatment capacity close to larger vessel ballast connections where a quay-based setup is impractical. Feasibility depends on marine access, mooring, hose-transfer safety, weather windows, traffic management and project-specific acceptance.
Key takeaways
- A barge option starts with navigation and berth suitability.
- Mooring and hose loads must accommodate relative vessel movement.
- Hydraulics must respect vessel manifold pressure limits.
- The published 1,000–5,000 m³/h range is only an indicative catalog input.
- Traffic and weather require marine operating limits and abort criteria.
- Each transfer needs traceable discharge and monitoring records.
Establish marine suitability
Marine access assessment is the starting point for the project brief. In this case, draft, air draft, channel restrictions and tide can limit barge attendance. Establish navigation rules, berth geometry and tug or pilot requirements before comparing concepts, because these conditions determine whether shore-side work is practical.
The commercial case should be measured against the operating pattern rather than an equipment headline. Record navigation rules, berth geometry and tug or pilot requirements alongside expected vessel demand, turnaround pressure and the consequence of an unavailable service. That creates a basis for deciding whether the option should be mobile, permanent or not pursued.
A feasibility note should state the assumptions that could change the conclusion. In particular, revisit navigation rules, berth geometry and tug or pilot requirements when berth allocation, vessel mix or local rules change. This prevents a preliminary concept from being treated as an operational commitment.
Engineer the alongside arrangement
Mooring arrangement needs a physical walk-through, not just a drawing review. relative movement between vessel and barge affects hose loads. Inspect fenders, mooring plan, freeboard range and emergency separation at the actual berth and include the people who will rig, monitor and disconnect the transfer.
Temporary interfaces should be designed for the full transfer sequence. Check fenders, mooring plan, freeboard range and emergency separation for safe access, containment, mechanical protection and an unambiguous isolation point. A route that works while idle may be unsuitable during cargo work or an emergency.
The operating procedure should identify who controls each boundary. It should cover fenders, mooring plan, freeboard range and emergency separation, communications between ship and shore, and the action to take after a leak, pressure alarm or loss of contact. Those details matter more than nominal connection compatibility.
Set the transfer duty
Barge transfer hydraulics must be calculated as a complete system rather than as a nameplate flow. larger volumes require stable flow without exceeding vessel manifold limits. Use hose pressure rating, pump curves, surge and flow-control logic to establish the duty point over the expected range of vessel levels and transfer rates.
Pressure loss changes with hose length, fittings, filtration condition and elevation. Confirm hose pressure rating, pump curves, surge and flow-control logic using conservative fouling and operating assumptions, then agree the allowable setpoints with the vessel. This avoids forcing a shore service into a pump condition it cannot sustain.
Instrumentation should show whether the planned duty is actually being achieved. Trend hose pressure rating, pump curves, surge and flow-control logic with transfer volume, pressure and alarms, and preserve the data after the operation. It is the most useful evidence when a delay or abnormal stop needs explaining.
Interpret published ranges
Barge capacity screening includes supporting systems that can be overlooked in an early layout. the 2021 HarborBallast catalog presents mobile barge service at 1,000–5,000 m³/h, not a project capacity promise. Assess hydraulics, utilities, local permitting and acceptance assessment as part of the treatment package, rather than leaving it for site mobilisation.
A workable installation provides safe access for inspection, cleaning and fault response. Verify hydraulics, utilities, local permitting and acceptance assessment under normal work, night work and restricted terminal conditions. The layout should not depend on improvised cables, drains or access routes.
The design basis should also define what happens when a support service is lost. Test hydraulics, utilities, local permitting and acceptance assessment against a power interruption, blocked drain, high solids load or control failure. A controlled stop is preferable to continuing a transfer without the required safeguards.
Manage traffic and weather
Marine operating limits is governed by the local operating and acceptance framework. traffic movements and weather can make an alongside transfer unsafe. Confirm VTS coordination, wind and wave limits, lighting and abort criteria early with the parties whose approval, permit or instruction affects the work.
IMO G5 is guidance for reception facilities; it is not a licence or a universal technical design. Map VTS coordination, wind and wave limits, lighting and abort criteria against applicable flag, port, class, authority and discharge-permit requirements. The resulting gap list should be closed before a vessel is booked.
No port-side arrangement should be described as guaranteeing D-2 compliance or acceptance. Retain the decisions on VTS coordination, wind and wave limits, lighting and abort criteria, the agreed operating limits and the authority communications. That record makes the limits of the service clear to all parties.
Coordinate discharge and proof
Barge operation records turns a completed transfer into an auditable operation. the shore or barge discharge route must be traceable for every transfer. Agree metering, monitoring, waste handling and records required by stakeholders before work starts so evidence is captured at the time it is created.
Useful records connect the vessel's ballast activity with shore actions and any separated-waste route. Reconcile metering, monitoring, waste handling and records required by stakeholders against timestamps, meter totals, alarms and the person responsible for each handover. Corrections made later are weaker than contemporaneous records.
Sampling or testing, where required, needs an agreed purpose and chain of responsibility. Sea Clean can coordinate with independent ISO 17025 laboratories and flag/class-authorised parties where required; it is not an accredited laboratory or independent certifier. Store metering, monitoring, waste handling and records required by stakeholders with the service report and relevant vessel documentation.
Frequently asked questions
Why use a treatment barge?
It may bring equipment close to a vessel where quay space or permanent pipework is limited. Marine access and an accepted operating arrangement are essential.
What barge flow is published?
The 2021 HarborBallast catalog presents 1,000–5,000 m³/h for mobile barge service. It requires project-specific hydraulic, utility, permitting and acceptance assessment.
Can a barge work at every berth?
No. Navigation, draft, mooring, traffic and weather constraints can rule out a location. Port and marine stakeholders should review suitability.
Who authorises a barge operation?
The required approvals depend on the port, flag, marine rules and discharge arrangement. They must be confirmed for the specific operation.
